Built for the Road Less TraveledWe built the Dwarf Stove to solve a problem. When setting up our 1966 Airstream adventure trailer, we needed a compact wood stove that was efficient, affordable, and made for off-grid heat. Everything we found was either missing key features, beyond our budget, or designed for much larger spaces. So we set out to create the perfect stove for small spaces! The Dwarf 3kW Lite wood stove is built specifically for small spaces. It’s ideal for RVs, trailers, vans, skoolies, yurts, and other tiny setups where you want efficient, dry heat during your travels or weekend getaways. |
Dwarf 3kW LITE Key Features
The 3kW LITE is identical in size and heat output to the standard Dwarf 3kw but a fraction of the weight and at a lower price. To get these savings we removed all the bells and whistles for a very simple, lightweight and modestly priced stove. What’s left is a simple, efficient tiny wood stove that’s perfectly suited for spaces where size, weight and budget are top priority. See the complete 3kW LITE vs 3kW Standard comparison here.
- Cast Iron Door and Firebox for long-lasting heat and durability
- Large Viewing Window adds ambiance and helps monitor your fire
- Top Flue Exit
- Usable Cooking Surface lets you cook with a small pot or kettle on top
- Combined Primary and Secondary Air Controls, Separate Air Wash Control for fine-tuned burn and clean glass
- Fire Grate and Ash Pan make cleanup quick and easy
- Cool-Touch Spring Handle keeps your hands safe while stoking
- Built for Life Guarantee – register your stove and receive a lifetime of free replacements of consumable parts (fire bricks, glass, and gaskets)
Optional Add-Ons
-
- Tall Legs
- Wood Storage Stand
- Not compatible with our Direct-Air Intake
- Not compatible with our Stove-Mounted Heat Shields
Dwarf Specs at a Glance
| Dimensions: | H17.25” x W10.5” x D8.75” – See detailed measurements drawings |
|---|---|
| Heat Output: | 3kw (around 10,200 BTUs) How many BTU’s do you need? |
| Weight: | 55lbs |
| Flue Diameter: | 4” |
| Material: | Steel Body with a Cast Iron Door and Firebox |
| Fuels: | Wood, Pressed Logs – up to 8.5″ long |
| Certifications | EPA Camp Stove Exempt. Not a residential heater. For portable and temporary use only. |
| Dwarf Stove Manual | Download Stove Manual |
Clearance Requirements
- 16 inches on the sides
- 18 inches at the rear
- 36 inches from the top to the ceiling
You can reduce clearances by up to two-thirds with proper heat shielding. Read about heat shield options and clearance reductions here.
Construction and Functionality
Body
Made from thick steel plate, between 3/16 inch and 5/16 inch, for strength and durability in tough travel conditions.
Door
Cast iron with a large viewing window for a cozy, radiant heat source and optimal heat retention (cast iron remains hot much longer than steel)
Flue Outlet
The Dwarf 3kW LITE uses a 4″ flue exit that exits out the top of the stove.
Air Controls
The 3kW LITE’s primary and secondary air are combined and controlled by a lever below the firebox. A tertiary air wash above the door keeps the glass clean and helps the fire burn more efficiently.
Firebox
The firebox is made of cast iron for even heat and long life. The fire bricks are made from 2 lightweight ceramic fiberboards which reflect heat back to the fire for hot, clean-burning and protects the stove body from damage.
Ash Management
The cast iron grate at the bottom of the firebox allows ash to fall through. During a fire you can easily sift out ash by shifting the coals around with a long tool. Below the grate is a removable ash pan that catches ash for easy disposal. No need to dig it out with a shovel.
Shipping Info
Free shipping to the lower 48 U.S. states on orders over $1,000. Use our Kit Builder to build your full venting setup and qualify for free shipping. See our shipping policies for more details and shipping outside the U.S.
Safety Information
- ⚠ Proposition 65 Warning: Use of this product can expose you to chemicals including soot, creosote, wood dust, and wood smoke containing carbon monoxide, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- ⚠ Cooking Warning: The stove’s coating is not food-grade. Always use cookware, and never cook food directly on the stove.
- EPA Notice: This stove is not certified for residential use. It is intended for portable or temporary heat only.
Want help loading your cart with your stove, stove upgrades, and installation parts specific to your space? Checkout our kit builder tool.
Have questions? Contact our team of experienced Dwarf wood stove users for personal support on your project at support@tinywoodstove.com.
David Bird (verified owner) –
Dwarf Stove, gigantic appeal! This stove has surpassed all my expectations. We use the stove aboard our 50′ sailboat on cool nights, sitting under the stars. A small amount of wood goes a long way to help keep us warm and the glass door does amazing things for the ambiance. We use Dickinson stainless stove pipe to vent the smoke downwind. Our sailing friend has a Dwarf installed inside her boat and it keeps the cabin toasty warm. A small stove with big performance that we gladly recommend!!!
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Jessie Hatch (verified owner) –
I just want to say that if i was able to give more than 5 stars i would. I couldn’t be happier with this product. I have had my 3kw LITE for almost a year now and have had zero issues with it. It is very efficient and will burn all night if needed. It is very well built and looks good to. I have this is my 308sq ft tiny house (including lofts) and have no issues at all heating it. The customer service i received while buying this was great, they answered any questions i had and was willing to help in anyway. you can tell they stand behind their product which is hard to come by anymore. Thanks again for a great wood stove.
Upvote if this was helpful (1) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Gilberto Garcia jr. –
Sounds very satisfied.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Cody Hennigan –
Thank you for your message! The 3kW Lite does not have a rear exit option but the 3kW Standard does. Feel free to email us at support@tinywoodstove.com for more information!
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Mike (verified owner) –
How's the stove's output? Just Right
What kind of structure are you heating? RV
Happened to be in stock when I purchased. It was shipped very quickly and got to me every quickly. Good instructions and works well in my 38 ft 5th wheel with 4 slides to keep it warm and enjoying the glow of the fire in the evenings. Good service and quality and have recommended to several friends.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Angela Reed –
Where was the stovepipe vented? Out window opening or drilled roof opening?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Ryan (verified owner) –
How's the stove's output? Just Right
What kind of structure are you heating? Something Else
It’s a great little stove puts out a lot of heat. Just be prepared to feed it. Would definitely recommend it.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Dan –
Hi Christine. You can find our best tips for extending burn times here: How to make a small wood stove burn longer
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Gail Vaughn (verified owner) –
How's the stove's output? Just Right
What kind of structure are you heating? Cabin
It’s been a few years since I installed this stove in my tiny log cabin. Couldn’t be happier with it. In the mornings it takes the temp. from mid-50’s to mid-70’s inside of an hour. Takes frequent feeding, small wood pieces. It really puts out the heat.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Dan –
Thanks for the question, Christine. The Dwarf 3kW’s firebox will fit logs up to 8 inches long. We find a standard length log (about 16 inches) cut in half will fit nicely.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Carla Sylvae (verified owner) –
How's the stove's output? Just Right
What kind of structure are you heating? Something Else
I’m super stoked with my Dwarf Lite stove! It’s beautiful and very functional. It heats my little trailer up quickly with a wonderful quality of heat. The folks at Tiny Wood Stove gave the most awesome customer service. I can’t recommend them enough!
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Question
Molly –
Can you use the direct air intake box on this model?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Heather McNabb –
Hi Molly,
No, our Direct Air Intake Kit only fits the standard models, not the LITE.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Kevin –
Does it come with bricks?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Cody Hennigan –
Kevin-
The 3kW Lite is designed to save weight for those structures that need to be more conscious of how heavy they are. The Lite version comes with a ceramic fiber panel instead of bricks. The 3kW Standard, 4kW and 5kW all come with standard fire bricks.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Bobby Vilas (verified owner) –
How's the stove's output? Just Right
What kind of structure are you heating? Something Else

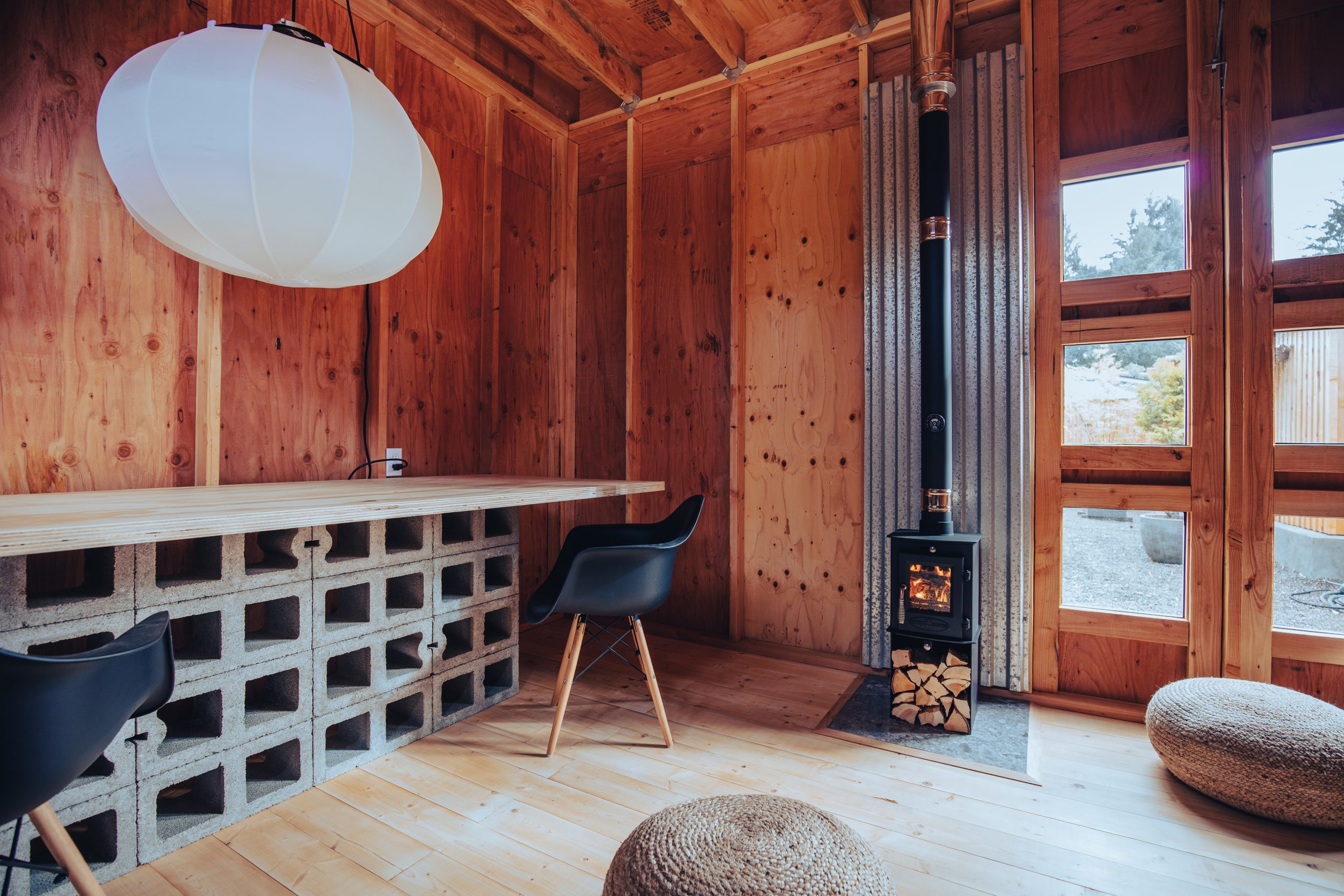

I wanted a wood fire option for heating my studio on the Oregon Coast. I had tried electric and Eco Fuel fireplaces on other projects and found that I missed the crackle and flame of a real wood fire. After much searching for a quality tiny wood stove, I finally landed on the Dwarf 3kw Light. It works flawlessly in my 200 square foot building. The quality of construction is fantastic! Second only to the amazing service I received from the team at Tiny Wood Stove. I highly recommend them and there products. The stove parts and fittings all worked beautifully together and I couldn’t be more pleased with the finished product.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Question
Robin BRYNE –
Hi , what is the maximum dimension of the wood that can be burned in this model?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Cody Hennigan –
Robin- the 3kW Lite and Standard stoves are able to fit pieces of wood from 6-8″ in length. Feel free to email us at support@tinywoodstove.com if you have further questions.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Gavin (verified owner) –
How's the stove's output? Just Right
What kind of structure are you heating? Tiny House
After building our tiny home, me and my girlfriend felt we needed a backup heat source. I spent weeks searching for a wood stove that would work for our space, and the search was over after finding the dwarf 3kw lite. It heats our 200sqft space plenty, and adds a cozy feeling. Customer service is phenomenal and the company seems passionate about what they do as well. I highly recommend doing business with tinywoodstove.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Anna –
Will any burn coal?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Cody Hennigan –
The 3kW Lite is not designed to burn coal; however, the 3kW Standard, 4kW, and 5kW stoves all have riddling grates and multiple air controls that make burning coal possible.
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Michele –
How would you set up the area around it so it doesn’t have the be so far from the walls?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Kayla Addison –
Hi Michele,
Please read our article “Heat Shields for Clearance Reduction” to learn how to do that!
Thanks,
-Kayla
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
Question
Lacey –
Hi, does the dwarf 3kw Lite have the option to add the heat shield? It looks like maybe on the back?
Upvote if this was helpful (0) Downvote if this was not helpful (0) Watch Unwatch Flag for removal
Cody Hennigan –
Lacey-
The Lite does not have the pre-drilled holes to attach the heat shields so they are not compatible. You would need to purchase the 3kW Standard if you want to use our stove-mounted heat shields. Thanks!
Upvote if this was helpful (0) Downvote if this was not helpful (0) Flag for removal
